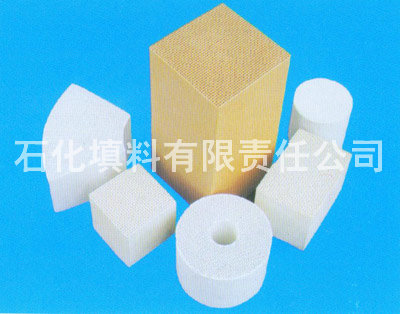

 [ Products Description ]
High surface area, large heat capacity, low thermal expansion, resistant to corrosion and high temperature, ceramic honeycomb monoliths have been well used in chemical, metallurgical, gas and environmental protection industries.
[ The main usage is as follows ]
• Tower packings-- With high surface area, even distribution of fluid and, efficient in mixture separation in chemical & petrochemical industries.
• Catalyst carriers-- Reduce the oxidation temperature of VOC in purification of industrial exhaust gases in RCO systems and automobiles.
• Regenerative heat step-up transformer-- Large heat capacity, low resistance to fluid and, energy saving up to 40-70% in RTO systems.
• Gas combustion distributor-- Distribute the heat uniformly, and make the combustion completely. It can save energy more than 10%.
• Kiln furniture in refractory industries-- Low bulk density and high thermal efficiency.
[ Physical & Chemical Properties of Honeycomb Monoliths ]
| Item/Type |
Alumina |
Mullite |
Dense Cordierite |
Porous Cordierite |
Mullite-Cordierite |
Stone ware |
Corundum |
| Chemical Composition % |
Al2O3 |
48-55 |
66-72 |
32-36 |
32-37 |
55-65 |
20-26 |
85-92 |
| SiO2 |
40-45 |
25-30 |
45-52 |
46-52 |
28-36 |
68-75 |
8-11 |
| MgO |
/ |
/ |
5-8 |
8-12 |
2.5-3.2 |
0.2-0.3 |
1.8-2.5 |
| K2O+Na2O+CaO |
4.0-5.0 |
≤1.0 |
≤3.0 |
≤2.0 |
≤1.0 |
2.5-4.0 |
0.5-1.2 |
| Density, g/cm3 |
>2.7 |
>2.9 |
>2.4 |
1.9-2.0 |
2.9-3.2 |
2.3-2.5 |
>3.2 |
| Coefficient of thermal Expansion(20-1000°C),×10-6.°C |
5-7 |
5.5-6.5 |
2.5-3.5 |
1.3-2.5 |
≤5 |
5-7 |
6-7 |
| Heat capacity(20-1000°C), J/kg.°C |
1100-1300 |
1100-1300 |
800-1200 |
750-900 |
1100-1300 |
840-920 |
1300-1400 |
| Thermal conductivity(20-1000°C), W/m.°C |
1.5-2.5 |
1.5-2.0 |
1.5-2.5 |
1.3-1.5 |
1.5-2.3 |
1.0-1.2 |
|
| Spalling resistance, °C |
≥150 |
≥350 |
≥250 |
≥360 |
≥250 |
≥150 |
>200 |
| Max. working temp. °C |
1100 |
1600 |
1300 |
1300 |
1550 |
1300 |
1750 |
[ Type and size of the product ]
| Item/Type |
1 |
2 |
3 |
4 |
5 |
6 |
| Number of channels |
5×5 |
13×13 |
20×20 |
25×25 |
40×40 |
50×50 |
| Channel density, cm-2 |
0.15 |
1 |
2 |
3 |
7 |
11 |
| Pore size, mm |
26.3 |
9.2 |
6.4 |
4.9 |
3.0 |
2.3 |
| Thickness of wall, mm |
2 |
1.5 |
1.2 |
1.0 |
0.7 |
0.7 |
| Surface area, m2/m3 |
117 |
278 |
455 |
540 |
825 |
1005 |
| Porosity, % |
77 |
74 |
73 |
67 |
65 |
57 |
| Sizes, mm |
Standard sizes: 150×150×600/450/300/150/100/50
Others: 100×100×100/40 |
|
